AnyTone AT-5555N II 28.000-29.700MHz 10 Meter Radio 40 Channel Mobile Transceiver AM/FM/SSB/LSB/USB Mode 10 Meter Radio

$345.99 USD

~~$0.00 USD~~ $345.99 USD

Sale Sold out

Shipping calculated at checkout.

Color Standard

Ships From United States

SPECIFICATIONS

Battery Capacity(mAh): -

Battery Included: no

Dimensions: 28.3x20x6cm

Frequency Range: 28.000-29.700MHz

High-concerned chemical: none

Is_Display: Yes

Material: Plastic+Metal

Maximum Range: 10km-50km

Output Power(w): 25w-50w

Rechargeablebatteryincluded: No

Storage Channel: 40 channels (programmable) in each band

Use: Outdoor

Walkie Talkie Type: Car

Waterproof / Water-Resistant: No

AnyTone

AT-5555N II

10 Meter Raio

28.000-29.700MHz

High Power

AM/FM/SSB/PA Modulation

Main Feature&Functions：

FUNCTIONS & FEATURES

◆ Large LCD display with backlight dimming

◆ FM / AM / USB / LSB / CW / PA modes

◆ Frequency Tuning Steps:100Hz / 1KHz / 5KHz / 10KHz / 100KHz / 1MHz

◆ ±500Hz/5KHz CLARIFIER Adjustment (R/T/R+T selectable)

◆ Flexible Menu Functions and PC Programming Software

◆ TX and RX Noise Reduction

◆ VFO / BAND / Memory Channel modes

◆ CTCSS/DCS with RX/TX Split functions

◆ Enhanced VOX Functions (can support digital mode operation)

◆ SQ, ASQ Function (FM and AM mode only)

◆ RF GAIN Adjustment

◆ RF PWR Adjustment

◆ SCAN Function

◆ NB/ANL Function

◆ Repeater Shift / Offset Frequency Function

◆ SIG / PWR / SWR Meter Functions

◆ TOT Function

◆ HI-CUT Function

◆ SWR Protection

◆ Power Supply Voltage Protection

◆ WX weather channels with RX VFO mode (136-174MHz FM)

◆ Weather Alert

◆ Key-Lock Function

◆ Model Name Customization Function

◆ Compatible with electret and dynamic MIC types

◆ ECHO Function

◆ Programmable RB Function

◆ Keypad BEEP Function

◆ +10KHZ Function

◆ DW Dual-Watch Function

◆ EMG Channel Function

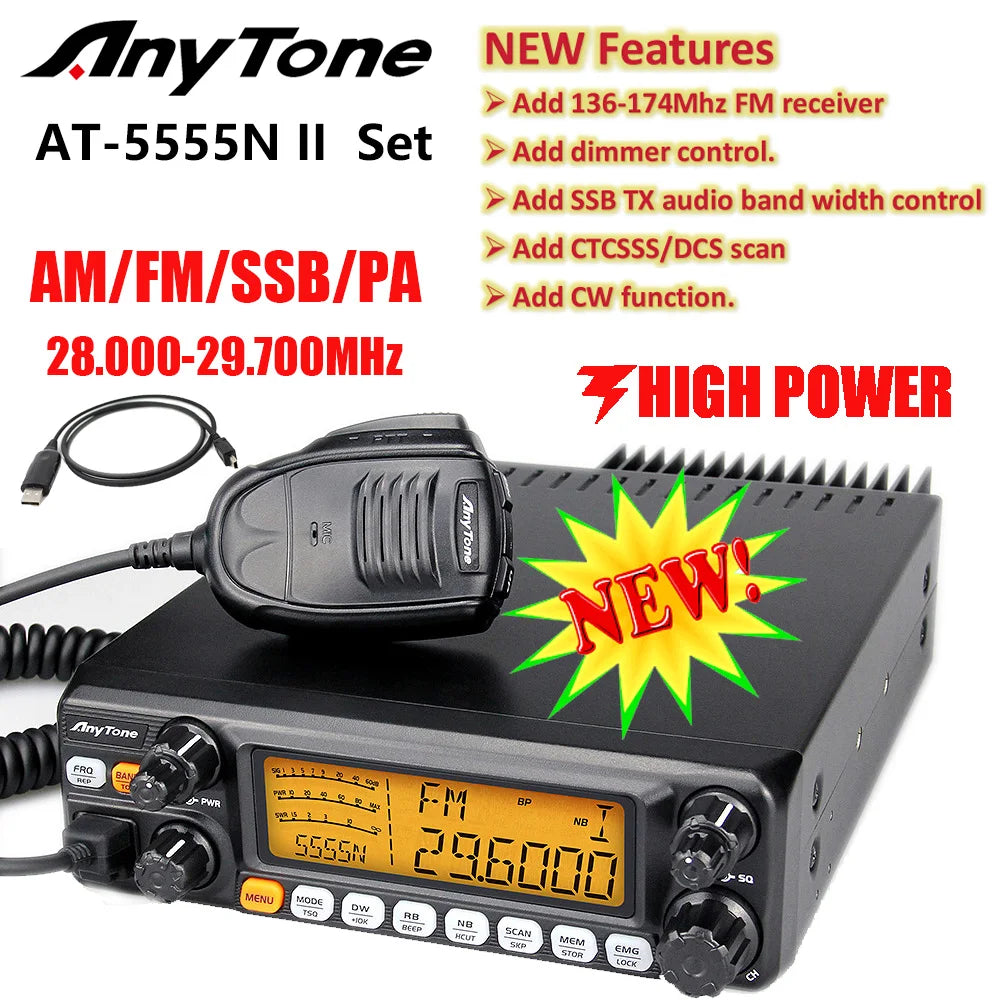

The new functions include:

1. Add 136-174Mhz FM receiver

2. Add dimmer control.

4. Add SSB TX audio band width control

5. Add CTCSSS/DCS scan

6. Add CW function.

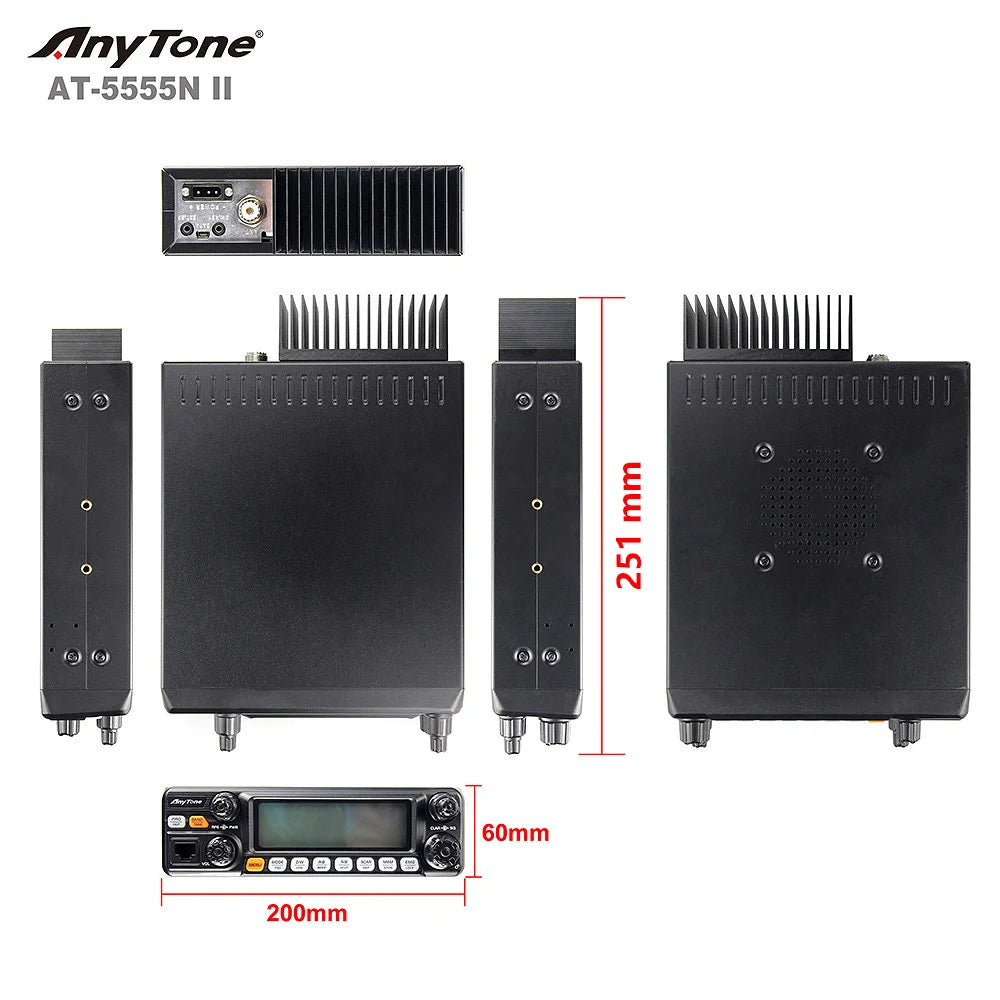

The body is shorter, the length is changed from 305mm to 251mm

SPECIFICATIONS

Frequency Range	28.000~29.700MHz
Frequency Band	A/B/C/D/E/F/G/H/I
Channel	40channels(programmable)in each band
Frequency Control	Phase-Locked-Loop Synthesizer
Temperature Range	-20℃ to +50℃
Input Voltage	13.8V
Dimensions (in mm)	283(L)x200(W)x60(H)
Weight	1.75kg
Power Output	AM PEP: 60W/FM: 50W/SSB: 60W(PEP)
Drain	10A(with modulation)
Modulation	AM/FM/USB/LSB
